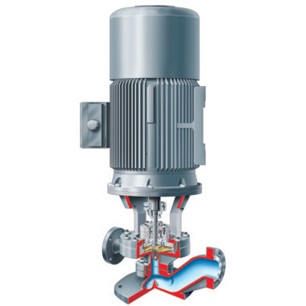

MSP Vertical In-Line, Medium Speed
Standards
• Flowserve
Operating Parameters
• Flows to 27 m3/h (120 gpm)
• Heads to 600 m (1970 ft)
• Pressures to 100 bar (1450 psi)
• Maximum suction pressure to 40 bar (580 psi)
• Temperatures from -40°C (-40°F) to 350°C (660°F)
• Speeds from 2000 rpm to 8000 rpm
• Closely following API 610, 8th edition
• Modified concentric volute
• Open impeller with balance holes and scallops
• Variable frequency drive
• Rigid coupling
• Single or dual cartridge mechanical seals
• Options
– Inducer
– Choice of materials
• Horizontal configuration
• MSP2 vertical in-line, medium speed, two stage
